Description

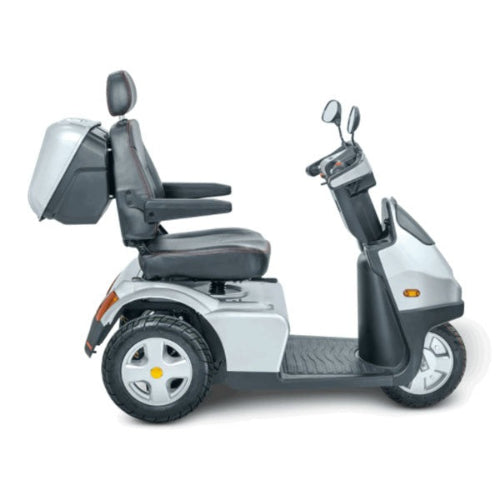

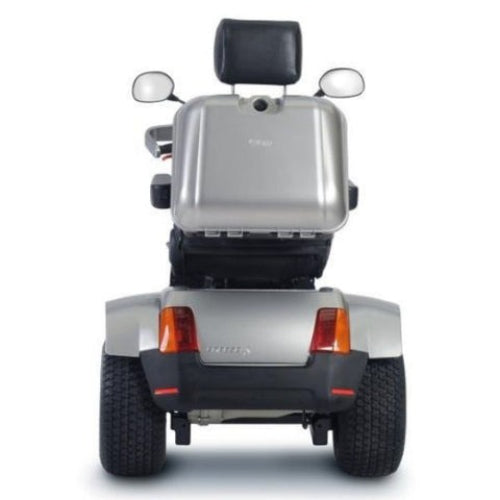

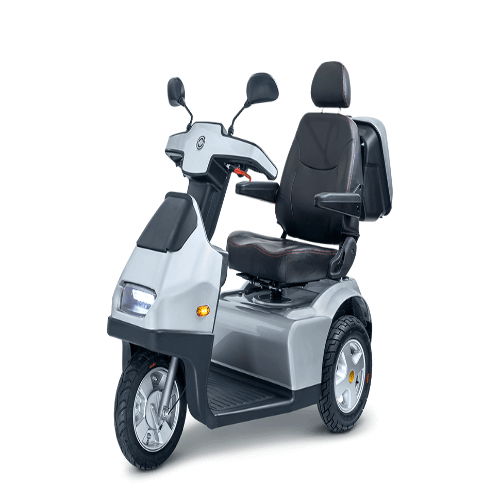

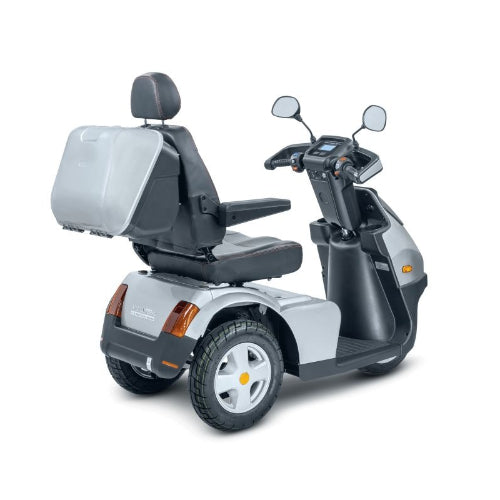

The Afikim Afiscooter SE Standard Mobility Scooter is a top-tier mobility solution designed for full-time outdoor use. This award-winning scooter boasts a weight capacity of 450 lbs and features advanced technology for a smooth and comfortable ride. It comes equipped with a large padded captain's seat, lockable storage compartments, LED lighting, and advanced steering capabilities. The scooter's full round suspension, advanced shock absorbers, and reinforced chassis ensure stability and a smooth ride over rough terrain. The ergonomic Delta tiller is adjustable and provides relief for those with limited hand strength. The fully adjustable orthopedic seat and flip-up armrests add to the overall comfort, making the Afiscooter S3 an ideal choice for those seeking both functionality and luxury in a mobility scooter.
FEATURES
- All-Terrain Capability: Designed to handle rough and uneven terrains with ease.
- 3-Wheel Design: Provides excellent maneuverability, making it suitable for both indoor and outdoor use.
- Luxurious Orthopedic Seat: Offers a comfortable ride with a rotatable seat that includes a headrest and armrests.
- Adjustable Tiller: The tiller can be adjusted to accommodate users of different heights.
- LCD Control Screen: Provides a clear and easy-to-read display of the scooter's status and controls.
- LED Headlights: Energy-efficient headlights for enhanced visibility and safety during night-time use.
- Lockable Front Compartment: Secure storage space for personal items.
Specifications
- Brand: Afikim
- Overall Length: 61 Inches
- Seat: 18 Inches
- Overall Standard Wheels Width: 27 Inches
- Overall Golf Tires Width: 35 Inches
- Without Canopy Height: 49 Inches
- With Canopy Height: 65 Inches
- Ground Clearance: 5 Inches
- Overall Weight: 337 Lbs (with Canopy)
- Weight: 234 Lbs (without Batteries)
- Weight Of Canopy: 33 Lbs
- Wide Wheels Weight: 26 Lbs
- Weight Capacity Including Driver: 450 Lbs
- Travel Range: 36-38 Miles
- Maximum Speed: 6.2-9.3 Mph
- Max Climbing Angle: 8º (15%) 15Kph, 11º (20%) 12Kph
- Turning Radius: 56 Inches
- Seating Width: 20 Inches
- Tire Type: Pneumatic (1.7 bar)
- Tire Size: Front (3-10) Inches
- Tire Size: Rear (3.50-10) Inches
- Battery Type x2: 12V 105Ah, Maximum
- Rear Wheel Drive Power Unit: 24V DC Motor
- Controller Type: SD 140A
- Charger Capacity: 8Amp
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered.
- Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
