Description

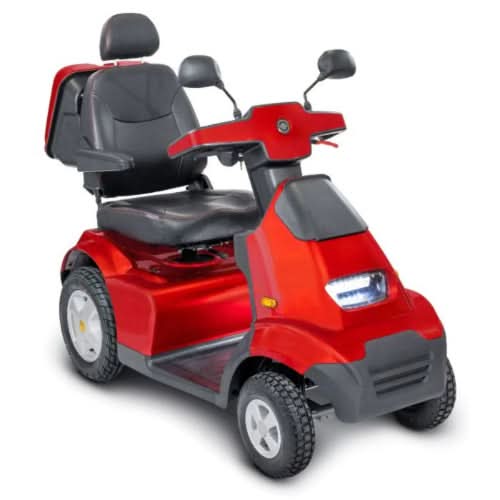

The Afikim Afiscooter S4 Standard, a robust 4-wheel mobility scooter designed for both comfort and stability. This heavy-duty scooter excels in all-terrain performance, ensuring a smooth ride on diverse surfaces. Featuring a Red Dot Award-winning design, it combines luxury with practicality. The spacious and luxurious Afiscooter S4 ensures maximum protection and safety with its orthopedic seat and easy boarding features. Designed for ease and comfort, this scooter is available in multiple seat widths for a perfect fit.
FEATURES
- Extra Comfort: A luxurious orthopedic rotatable seat designed for optimal comfort and easy boarding. Available in 20 Inches standard width and optional 22 Inches and 24 Inches sizes.
- Extra Utilities: Equipped with a lockable front compartment, built-in cup holders, and an energy-efficient LED headlight.
- Extra Safety: Features a robust frame, protective plastic shrouds, and a rubber (PU) shock-absorbing front bumper.
- Utilities: Lockable front compartment, cup holders
Specifications
- Brand: Afikim
- Type: 4-Wheel Mobility Scooter
- Design Award: Red Dot Award Winner
- Seat Width: 20 Inches
- Speed: 9.3 Mph
- Headlight: Energy-efficient LED
- Bumper: Rubber (PU) shock-absorbing
- Overall Length: 65 Inches
- Overall Standard Wheels Width: 27 Inches
- Overall Golf Tires Width: 35 Inches
- Overall Height with Canopy: 65 Inches
- Ground Clearance: 5 Inches
- Weight: 342 Lbs (with Batteries)
- Weight: 238 Lbs (Without Batteries )
- Canopy Weight: 33 Lbs
- Wide Wheels Weight: 26 Lbs
- Weight Capacity Including Driver: 500 Lbs
- Travel Range: 36-38 Miles
- Maximum Speed: 6.2-9.3 Mph
- Max Climbing Angle: 8º (15%) 15 Kph, 11º (20%) 12 Kph
- Turning Radius: 90 Inches
- Seating Width: 20 Inches
- Tire Type: Pneumatic (1.7bar)
- Tire Size: Front 4.10/3.50-6 Inches
- Tire Size: Rear 3.50-10 Inches
- Battery Type x2: 12V 105Ah, Maximum
- Rear Wheel Drive Power Unit: 24V DC Motor
- Controller Type: SD 140A
- Charger Capacity: 8Amp
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered.
- Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
