Description

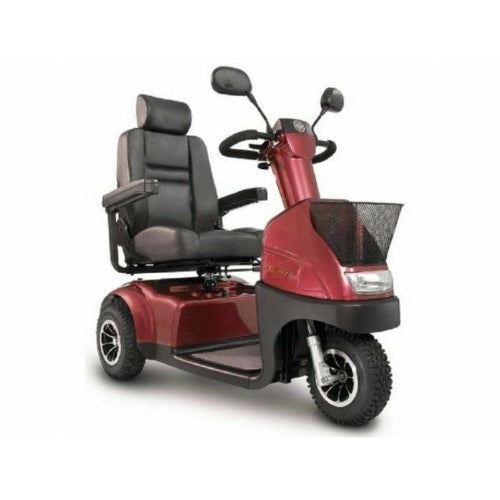

Afikim Afiscooter C3 Extended Range 3-Wheel Electric Mobility Scooter is designed for a dynamic and active lifestyle. Combining a powerful 24V DC motor, a luxurious captain's seat, and advanced shock absorbers, this scooter excels in both indoor and outdoor environments. Its compact design ensures excellent maneuverability with an impressive turning radius, while its ergonomic steering tiller enhances ease of use. With a travel range of up to 45 km and a top speed of 15 km/h, the Afiscooter C3 is perfect for those who seek comfort and performance in their mobility solutions.
FEATURES

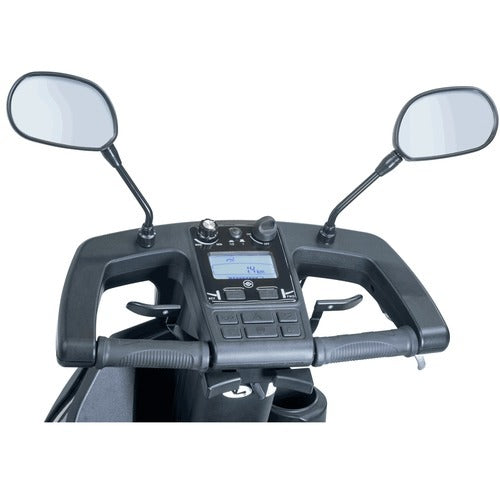

- Versatile Design: Ideal for both indoor and outdoor use with a small turning radius for easy maneuverability.
- Comfortable Seating: Luxurious captain’s seat provides exceptional comfort during extended use.
- Powerful Motor: Equipped with a 24V DC motor delivering 950W for robust performance.
- Adjustable Canopy: Optional canopy available for added protection from the elements.
- Advanced Suspension: Well-tuned shock absorbers ensure a smooth and comfortable ride.
Specifications
- Brand: Afikim
- Color: Red
- Overall Length: 51 Inches
- Overall Standard Wheels Width: 26 Inches
- Overall Folded Height: 31 Inches
- Height Without Canopy: 50 Inches
- Height With Canopy: 65 Inches
- Ground Clearance: 4 Inches
- Travel Range with Batteries: 25 - 28 Miles
- Maximum Speed: 6.2 - 9.3 Kmph
- Max Climbing Angle: 9 Degrees (16%)
- Turning Radius: 50 Inches
- Seating Width: 18 Inches
- Tire Type: Pneumatic (1.7 bar)
- Tire Size: Front (4.10/3.50-6) Inches, Rear (4.10/3.50-6) Inches
- Battery Type x2: 12V 105Ah, Maximum
- Rear Wheel Drive Power Unit: 950W
- Controller Type: SD 120A
- Charger Capacity: 8 Amp
- Weight (No Batteries): 165 Lbs
- Weight: 26 Lbs
- Weight Capacity Including Driver: 297 Lbs
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered.
- Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
